Container Filling

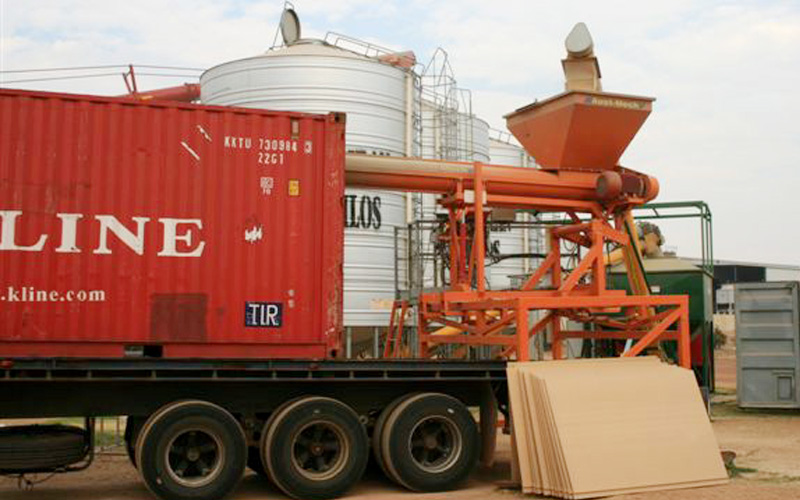

Aust-Mech offer a large range of equipment for bulk filling shipping containers. Our range includes both container inverters and horizontal container stuffers.
CONTAINER INVERTERS:
- Inverters for tilting containers to 90º (vertical), 50º, 45º and 30º depending on the bulk density and angle of repose of the product being filled.
- Road towable, portable or fixed units.
- Removable truck tray mounted units.
- Low profile designs.
- High speed cycling.
- Incorporating load cells to monitor container weight.
- Container standby station and auto placement on inverter frame.
- PLC automation.
- Aust-Mech can design a complete container packing system to suit your requirements.
- Australian designed and built
HORISONTAL CONTAINER STUFFERS:
- Conveyor or auger feeder units.
- High capacity filling – up to 7 tonnes per minute.
- Telescoping or fixed feeder conveyor/auger.
- Sideways, angular, radial and height adjustable feeder conveyor/auger.
- Auger types equipped with motor load sensing to enable pressure filling of container and provide auto retracting or sound and light signal to truck driver as container fills.
- Conveyor types equipped with level sensing switch to enable maximum fill in container and provide auto retracting or sound and light signal to truck driver as container fills.
- Spring loaded impact absorbing mount to guard against collision damage between auger and container.
- Mobile or fixed location units.
- Instantly relocatable units – Mounted on fully road registerable tandem axle chassis for running between sites.
- Fully automated filling – Conveyor/Auger hopper can be equipped with extended sides and level monitor to permit automatic control of silo/feed hopper outlet
- WH&S compliant walkway and access stairway for operational safety
- Can incorporate flow weigher to monitor and record filling weight.
- Sampling valve conveniently accessible.
- Choice of power options
- Aust-Mech can design a complete container packing system to suit your requirements.
- Australian designed and built
We also suggest you view our Mobile Tubeveyors to 10 tonnes per minute and Mobile Tubeveyors to 2.5 tonnes per minute
Note: The above points are options available for each system. Please contact us to discuss your individual requirements.
