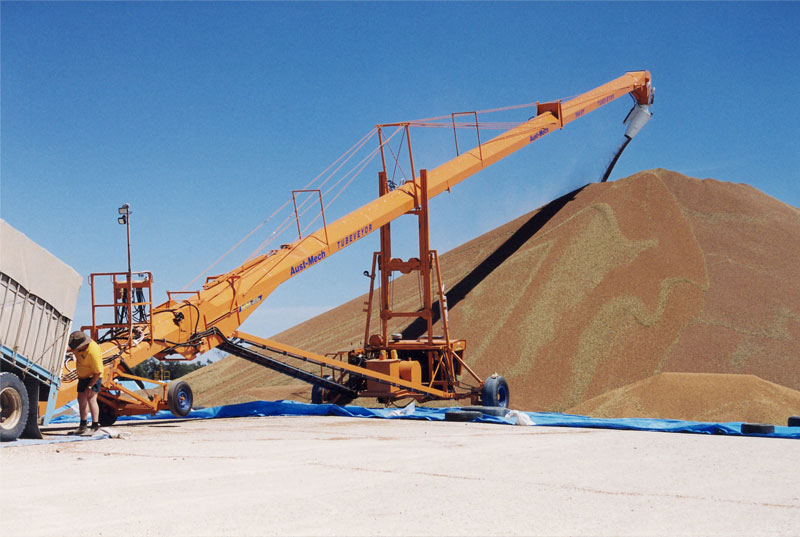

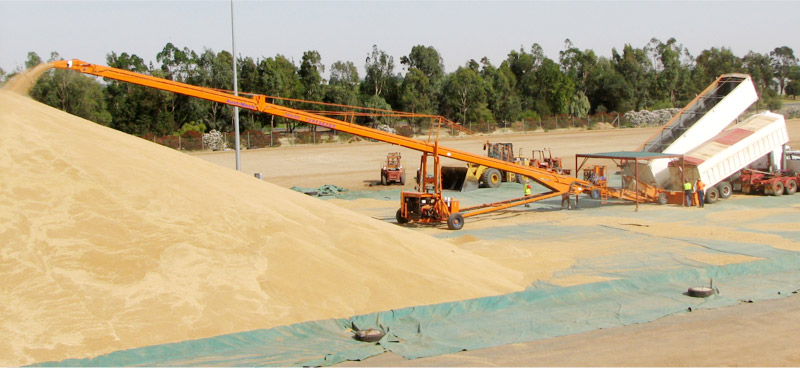

Mobile Tubeveyors to 10 tonnes per minute

Very high capacity mobile grain handling equipment designed specifically for bulk grain storage and handling sites and large cropping enterprises. Aust-Mech’s ‘Professional’ range of Mobile Tubeveyors can be custom designed to suit your specific requirements. Our ‘Professional’ range of Tubeveyors represents the largest fully mobile grain conveyors on the market in terms of both reach and capacity. These Tubeveyors can also be equipped with a vast array of purpose designed attachments enabling your Tubeveyor to handle all your grain conveying requirements and be versatile enough to instantly adapt as your operation changes or grows.

DESCRIPTION:

  • Capacities up to 10 tonnes per minute (600 t/hr).
  • Lengths from 40’ to 140’ (43m) long.
  • 280mm (11”), 356mm (14”) or 406mm (16”) diameter barrel with belt widths of 450mm, 550mm and 600mm respectively.
  • Self aligning, Automatic Spring Tensioners to belt maintains correct belt tension, which extends belt life, minimises maintenance and with Aust-Mech’s unique long travel design allows simple and rapid inspection of belt and roller condition.
  • Ultra-Slim tail end allows easy access to very low silo outlets and minimises damage from tipping trucks.
  • Folding barrel and telescoping axles allow road towing without disassembly
  • Self propelled for one person mobility around site
  • Large range of accessories to increase versatility. Eg. Cross sweep retrievers, swing away conveyors, pivoting chutes, drive over unloading grids etc.
  • Power options, On board diesel/hydraulic, Electric motor or PTO from tractor.
  • Australian designed and built.

FEATURES:

  • Very high capacity
  • Clean operation
  • Gentle on grain
  • Easy maintenance design
  • Hinged folding barrel and telescopic axles enable road towing without disassembly and using standard vehicle
  • Vertical hoisting undercarriage provides inherent strength without excessive weight
  • Fully self propelled with powered hoist, steering and auxiliary functions etc
  • Single-pin-fixing’ hoppers are all interchangeable.
  • Simple and convenient operator controls.
  • All new materials and components used.
  • Optional low draw ‘soft’ starters for electric drive models.
  • Diesel Hydraulic models feature full flow oil filtration and active oil cooler.
  • Designed for constant, high performance use in harsh environments.
  • Can be custom designed to suit your requirements.
  • Can be fitted with Cross sweep retrievers, swing away conveyors, pivoting chutes, drive over unloading grids etc.

ADVANTAGES:

  • Proven design for longevity and performance.
  • Unique Aust-Mech long travel spring tensioners to belt.
  • High capacity grain conveying with minimal power requirements.
  • Careful design to minimise grain leakage.
  • Most versatile grain conveyors available.
  • A vast array of time saving and “user friendly” features means fast turn-around and minimal down-time.
  • Numerous attachments are available ensuring a highly versatile investment – less capital equipment required to perform numerous tasks.
  • 25+ years experience in the design and manufacture of Tubeveyors and superior bulk grain handling equipment.
  • Aust-Mech are world leaders in high capacity Tubeveyor design and innovation.
  • Backup field service Australia wide.
  • Australian made for Australian conditions.

AVALIABLE OPTIONS:

  • On board Diesel/Hydraulic, Electric motor or PTO from tractor drives available.
  • 3 point linkage mounted PTO side drive kit.
  • Manufactured from stainless steel for use with highly corrosive materials eg. Fertilisers etc.
  • Multiple operator consoles including remote or radio control
  • Variety of infeed hoppers to suit your requirements.
  • Hydraulic power drive to wheel drives, hoist, tailwheel lift, tailwheel steering and to power attachments.
  • Epicyclic wheel drive units.
  • Hydraulically operated directional head chutes.
  • Cross sweep retrievers.
  • Swing away conveyors.
  • Mobile Drive over inloading grids.
  • CC TV camera at head to assist positioning of Tubeveyor into silo inlet.
  • Turntable axles for sideways movement along bunkers or row of silos or for radial movement.
  • lighting kits for night operation.
  • Chemical spray application kits.
  • Optional low draw ‘soft’ starters for electric drive models.
  • Diesel engine options.

We also suggest you view our ‘Mobile Tubeveyors to 2.5 tonnes per minute page.
