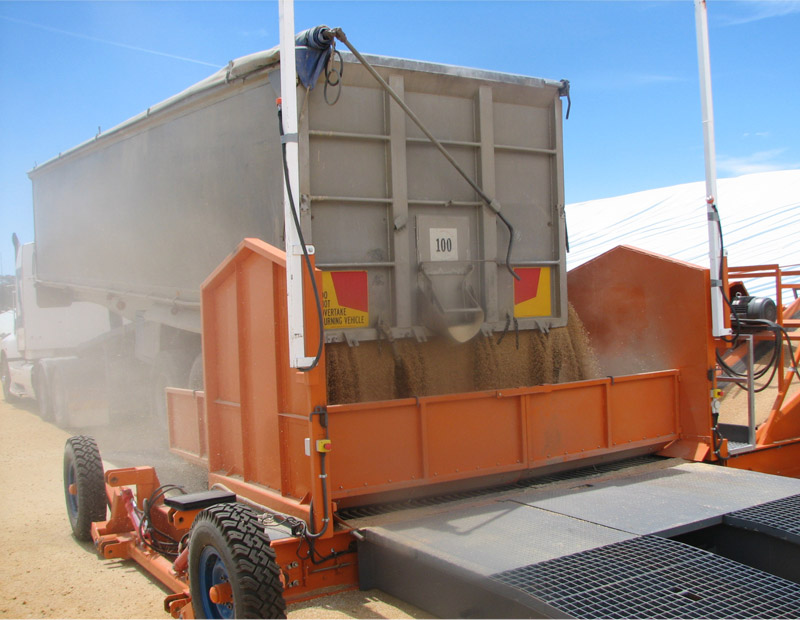

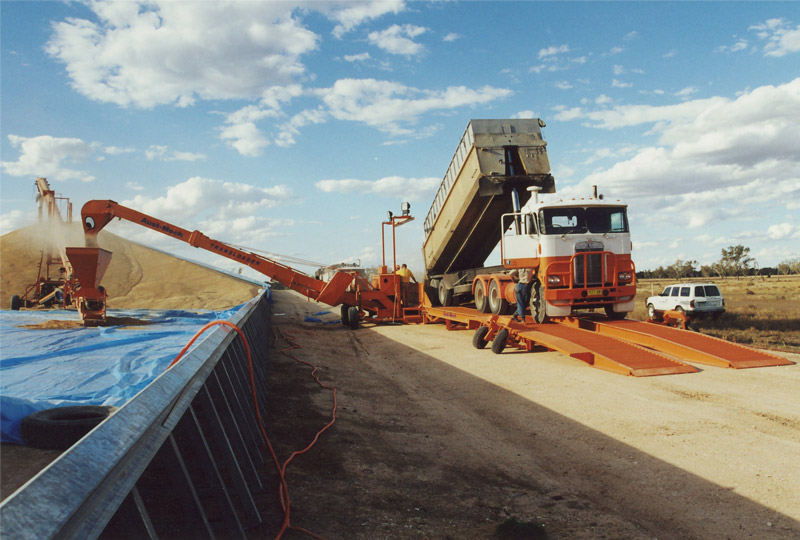

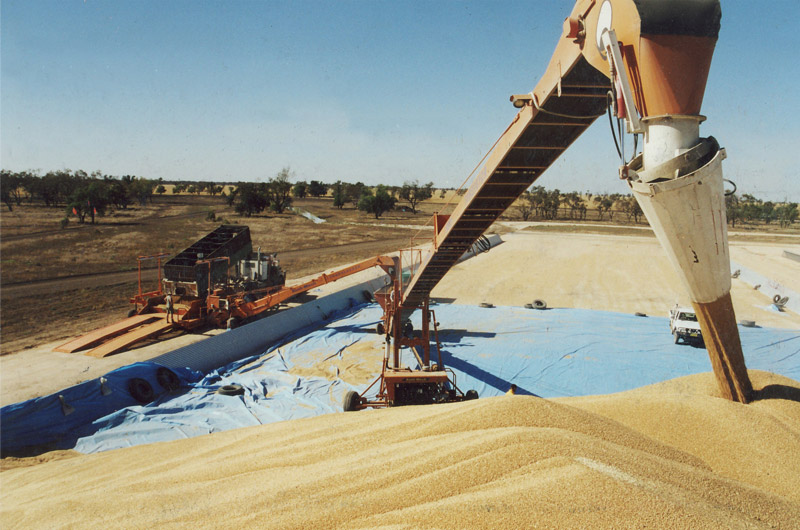

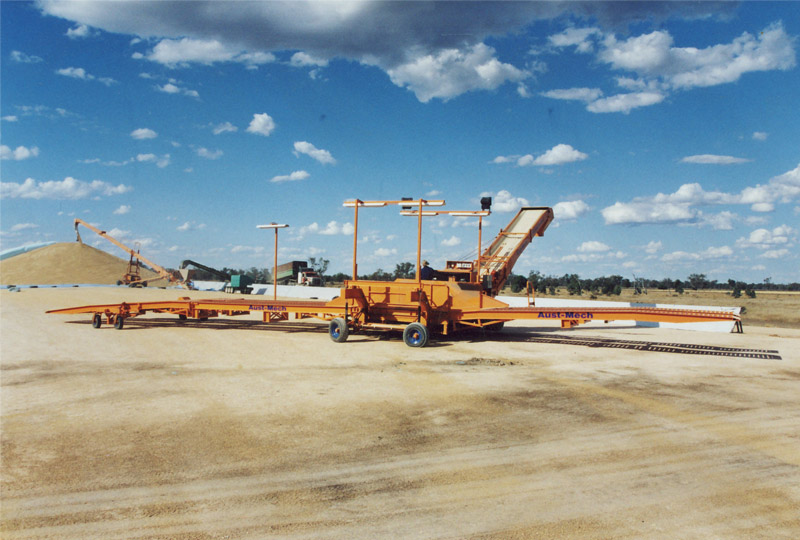

Drive Over Receival Grids

Highly mobile or fixed drive over receival grids designed for high capacity, quick and convenient unloading of trucks including B doubles and road trains. Unique all belt design ensures gentle handling, safe and smooth operation and self cleaning between loads. Available in a range of sizes and configurations to suit your application

DESCRIPTION:

Capacities up to 10 tonnes per minute (600 t/hr).
All belt design for safe, clean and gentle operation.
Your choice of power source including onboard power pack.
Low deck height.
Low gradient ramps.
Level tipping deck.
Rapid relocation as bunker fills.
Power options, On board diesel/hydraulic, Electric motor or PTO from tractor.
Australian designed and built.

FEATURES:

High capacity.
Clean operation.
Gentle on grain.
Self cleaning between loads.
Spring tensioner to conveyor belt.
Versatile – Propulsion from stacker or tractor or self propelled.
Tractor propelled versions have tractor attached clear of roadway for instant mobility
Truck friendly – low grid height and low gradient ramps.
Level tipping deck.
Grid designed to accommodate 20 tonne axle load
Specialist design for minimum maintenance.
Unique flow control system allows matching to stacker capacity without restricting grid opening size.
Hydraulic wheels and ramp lift for easy manoeuvrability.
Electric, hydraulic or diesel engine powered.
Easy and fast movement between sites without use of a crane.

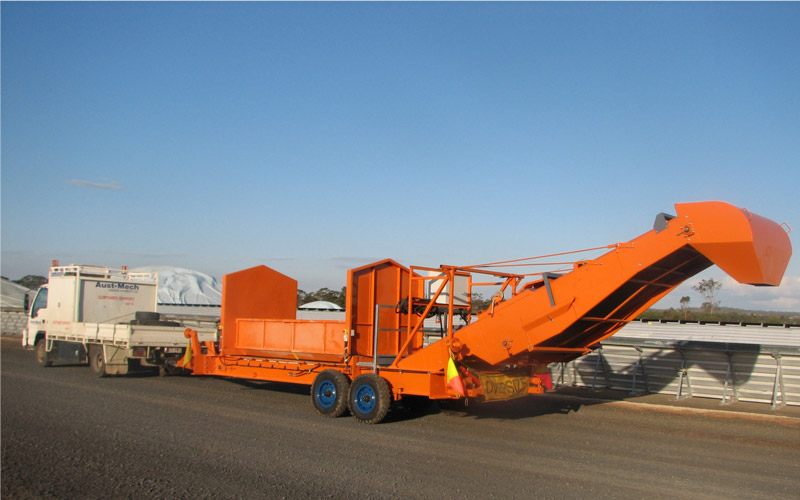

Easily towed on road.
Can be matched to suit any stacker.

ADVANTAGES:

Proven design for longevity and performance.
Unique Aust-Mech long travel spring tensioners to belt.
High capacity grain conveying with minimal power requirements.
Time saving and “user friendly” features means fast turn-around and minimal down-time.
25+ years experience in the design and manufacture of Tubeveyors and superior bulk grain handling equipment.
Backup field service Australia wide.
Australian made for Australian conditions.

AVALIABLE OPTIONS:

On board Diesel, Hydraulic or Electric drive available.
Road towing kit.
Night operation lighting kit c/w light towers.
Auger type or all belt design.
Fixed location or fully mobile units.
Propulsion from stacker or tractor or self propelled from on board power pack.
Various lengths of outfeed conveyor to suit stacker intake hopper.
Hungry boards and gates behind truck to increase holding volume.
Remote or radio control.
Truck ‘Go’ / ‘Stop’ lights.
